济南电缆桥架作为电气布线系统的关键组成部分，在建筑、工业厂区、市政工程等场景中广泛应用。它通过标准化的结构设计，为电缆提供支撑、保护与敷设通道，不同类型的桥架适配不同的安装环境与电缆特性，同时解决了电缆敷设中的、管理与维护难题，保障电气系统稳定运行。

　　Jinan cable tray, as a key component of electrical wiring system, is widely used in buildings, industrial plants, municipal engineering and other scenarios. It provides support, protection, and laying channels for cables through standardized structural design. Different types of cable trays are adapted to different installation environments and cable characteristics, while solving safety, management, and maintenance problems in cable laying, ensuring stable operation of the electrical system.

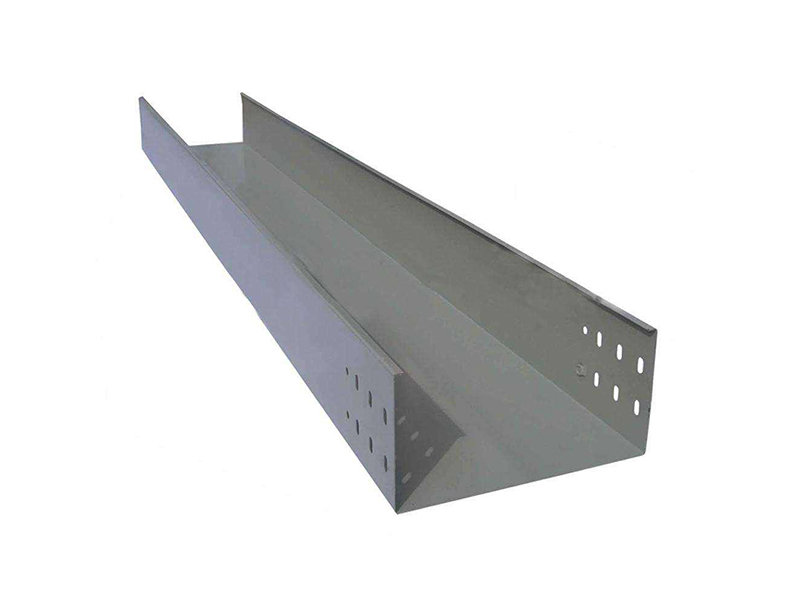

　　电缆桥架的类型丰富多样，按结构形式可分为槽式、托盘式、梯式和网格式，各自具备独特的适用场景。槽式桥架是全封闭结构，由底板和两侧挡板组成，能有效阻挡灰尘、水汽和外部机械损伤，适合敷设控制电缆、通信电缆等对防护要求高的线缆，尤其在潮湿（如地下车库）、多尘（如水泥厂车间）环境中优势明显，其封闭性还能减少电磁干扰，保障弱电信号传输稳定。托盘式桥架为半封闭结构，底板带有均匀分布的散热孔，两侧挡板高度低于槽式桥架，兼具防护性与散热性，适合敷设动力电缆（如低压电力电缆），散热孔能加速电缆运行时的热量散发，避免因高温导致绝缘层老化，常用于厂房车间、办公楼的电缆竖井内。梯式桥架由两侧纵梁和中间横档组成，形似梯子，结构轻便且散热性能优异，横档间距通常为 200-300 毫米，便于电缆固定，适合敷设大直径、大截面的电力电缆（如高压电缆），在户外架空或高空敷设场景中应用广泛，其开放式结构也便于后期电缆检修与扩容。网格式桥架采用金属网格焊接而成，重量轻、透气性好，能显著减少风阻和灰尘堆积，适合数据中心、通信机房等对散热和轻量化要求高的场所，同时网格结构便于观察电缆运行状态，降低故障排查难度。

　　There are various types of cable trays, which can be divided into trough, tray, ladder, and mesh formats according to their structural forms, each with unique applicable scenarios. The trough type bridge is a fully enclosed structure consisting of a bottom plate and two side baffles, which can effectively block dust, water vapor, and external mechanical damage. It is suitable for laying control cables, communication cables, and other cables with high protection requirements, especially in humid (such as underground garages) and dusty (such as cement plant workshops) environments. Its enclosure can also reduce electromagnetic interference and ensure stable transmission of weak current signals. The tray type cable tray is a semi enclosed structure with uniformly distributed heat dissipation holes on the bottom plate. The height of the baffles on both sides is lower than that of the trough type cable tray, which combines protection and heat dissipation. It is suitable for laying power cables (such as low-voltage power cables). The heat dissipation holes can accelerate the heat dissipation during cable operation, avoiding insulation layer aging caused by high temperature. It is commonly used in cable shafts in factory workshops and office buildings. The ladder style bridge is composed of two side longitudinal beams and a middle crossbar, resembling a ladder. It has a lightweight structure and excellent heat dissipation performance. The spacing between the crossbars is usually 200-300 millimeters, which is convenient for cable fixation and suitable for laying large-diameter and large section power cables (such as high-voltage cables). It is widely used in outdoor overhead or high-altitude laying scenarios, and its open structure is also convenient for later cable maintenance and expansion. The grid format cable tray is welded with metal grids, which is lightweight and has good breathability. It can significantly reduce wind resistance and dust accumulation, making it suitable for places with high requirements for heat dissipation and lightweight such as data centers and communication rooms. At the same time, the grid structure is easy to observe the operation status of cables, reducing the difficulty of troubleshooting.

　　按材质划分，济南电缆桥架可分为钢制、铝合金和玻璃钢等类型，适应不同的环境特性。钢制桥架是常用的类型，采用冷轧钢板焊接或成型，表面经镀锌、喷涂等防腐处理，强度高、承载能力强，适合一般干燥环境（如办公楼、），镀锌钢制桥架还可用于潮湿环境（如地下室），成本适中且性价比高。铝合金桥架由铝合金型材加工而成，重量仅为钢制桥架的 1/3，抗腐蚀性能优异，尤其适合潮湿、多雾的户外环境（如济南的雨季或靠近河流的厂区），表面经阳极氧化处理后，能抵御紫外线和酸雨侵蚀，使用寿命是普通钢制桥架的 2-3 倍。玻璃钢桥架以玻璃纤维和树脂为原料复合而成，具有极强的耐酸碱腐蚀能力，能适应化工车间、污水处理厂等强腐蚀环境，同时绝缘性能好，可避免电缆与桥架间的电化学腐蚀，但其承载能力低于金属桥架，适合敷设轻型电缆。

　　According to material classification, Jinan cable trays can be divided into types such as steel, aluminum alloy, and fiberglass to adapt to different environmental characteristics. Steel cable trays are the most commonly used type, welded or formed from cold-rolled steel plates, and treated with anti-corrosion treatments such as galvanizing and spraying on the surface. They have high strength and strong bearing capacity, and are suitable for general dry environments (such as office buildings and shopping malls). Galvanized steel cable trays can also be used in humid environments (such as basements), with moderate cost and high cost-effectiveness. Aluminum alloy cable trays are processed from aluminum alloy profiles and weigh only one-third of steel cable trays. They have excellent corrosion resistance and are particularly suitable for humid and foggy outdoor environments (such as the rainy season in Jinan or factory areas near rivers). After surface anodizing treatment, they can resist UV and acid rain erosion, and their service life is 2-3 times that of ordinary steel cable trays. Fiberglass cable tray is made of composite materials of glass fiber and resin, and has strong acid and alkali corrosion resistance. It can adapt to strong corrosive environments such as chemical workshops and sewage treatment plants. At the same time, it has good insulation performance, which can avoid electrochemical corrosion between cables and cable trays. However, its bearing capacity is lower than that of metal cable trays, making it suitable for laying lightweight cables.

　　电缆桥架首要解决的是电缆敷设的防护问题。在建筑和工业环境中，电缆直接暴露敷设易受机械损伤（如被重物挤压、尖锐物体划伤），导致绝缘层破损引发短路、漏电事故，桥架通过封闭或半封闭结构将电缆集中保护，避免外部冲击对电缆的伤害。对于户外或潮湿环境，桥架能阻挡雨水、水汽直接接触电缆，减少绝缘层老化速度，尤其在济南夏季多雨、冬季多雾的气候条件下，降低因受潮导致的线路故障风险。此外，桥架将电缆与其他管线（如水管、燃气管）物理隔离，避免不同管线之间的干扰或意外接触（如水管泄漏浸泡电缆），从空间布局上保障电气系统。

　　The primary concern of cable trays is the safety protection of cable laying. In building and industrial environments, direct exposure and laying of cables are susceptible to mechanical damage (such as being squeezed by heavy objects or scratched by sharp objects), which can cause insulation layer damage and lead to short circuits and leakage accidents. Cable trays protect cables through enclosed or semi enclosed structures to avoid damage from external impacts. For outdoor or humid environments, cable trays can prevent rainwater and moisture from directly contacting the cables, reducing the aging rate of the insulation layer, especially in Jinan's rainy summer and foggy winter climate conditions, reducing the risk of line failures caused by moisture. In addition, cable trays physically isolate cables from other pipelines (such as water pipes and gas pipes) to avoid interference or accidental contact between different pipelines (such as water pipe leakage soaking cables), ensuring electrical system safety from a spatial layout perspective.

　　电缆桥架能有效解决线缆管理混乱的问题，提升布线规范性与空间利用率。在大型建筑或工业厂区，电气系统往往包含成百上千根电缆，若随意敷设（如沿地面拖拽、无序悬挂），会导致线缆缠绕、交叉，不仅占用大量空间，还会给后期检修带来极大困难。桥架通过标准化的尺寸设计（如宽度 100-800 毫米、高度 50-200 毫米），将电缆按功能分类敷设（如动力电缆、控制电缆分槽敷设），不同回路的电缆有序排列，标识清晰，便于快速识别和查找目标电缆。同时，桥架可沿墙面、天花板、地面等多路径敷设，适应复杂的空间结构，在高层建筑的竖井、地下室的夹层等狭小空间中，能充分利用垂直和水平空间，减少对地面和作业区域的占用，为其他施工或设备安装预留空间。

　　Cable trays can effectively solve the problem of chaotic cable management, improve wiring standardization and space utilization. In large buildings or industrial plants, electrical systems often contain hundreds or thousands of cables. If laid randomly (such as dragging along the ground or hanging in disorder), it can lead to cable entanglement and crossing, which not only occupies a lot of space but also poses great difficulties for later maintenance. The cable tray is designed with standardized dimensions (such as width of 100-800 millimeters and height of 50-200 millimeters), and the cables are classified and laid according to their functions (such as power cables and control cables laid in separate slots). The cables of different circuits are arranged in an orderly manner with clear markings, making it easy to quickly identify and locate the target cables. At the same time, cable trays can be laid along multiple paths such as walls, ceilings, and floors, adapting to complex spatial structures. In narrow spaces such as vertical shafts and underground mezzanines in high-rise buildings, vertical and horizontal spaces can be fully utilized, reducing the occupation of the ground and work areas, and reserving space for other construction or equipment installation.
