正确制作出知道角度的桥架方法仅供参考

文章来源:http://www.sddlqj.cn/   作者:电缆桥架厂家发布时间:2022-06-25 浏览次数:18

返回:行业动态
在使用桥架的时候需要注意的问题很多,其中桥架的生产会出现一些问题,所以安装的时候要多加注意。那我们就来说说知道角度的桥的正确制作方法,仅供参考。
There are many problems that need to be paid attention to when using the bridge, among which there will be some problems in the production of the bridge, so more attention should be paid to the installation. Let's talk about the correct manufacturing method of the bridge with known angle, for reference only.
弯曲后的桥底边的长度(底边的斜边)可以和桥的宽度一样长,但范围控制在100-400mm以内。选择这个长度的两个点,在桥边的相对底边上画两条垂直线,选择桥的弯曲方向作为切割边;选择开口边作为底边,画两条垂直线作为两个等腰三角形的平分线。确定这个等腰三角形底边的长度。
The length of the bent bridge bottom edge (the beveled edge of the bottom edge) can be the same as the width of the bridge, but the range is controlled within 100-400mm. Select two points of this length, draw two vertical lines on the opposite bottom edge of the bridge edge, and select the bending direction of the bridge as the cutting edge; Select the open edge as the bottom edge, and draw two vertical lines as the bisector of the two isosceles triangles. Determines the length of the base of this isosceles triangle.
简单的算法就是以100高的桥架为例。等腰三角形底边的长度为76.5mm,即100:76.5。用工具切割等腰三角形后,将桥弯曲成由两个45度弯曲形成的90桥弯头。
The simple algorithm is to take a 100 high bridge as an example. The length of the bottom edge of isosceles triangle is 76.5mm, i.e. 100:76.5. After cutting the isosceles triangle with a tool, bend the bridge into a 90 bridge elbow formed by two 45 degree bends.
于改造后限制桥梁长度的弯头,可以控制任意长度和距离。可以通过简单的数学计算制作各种角度和长度的弯头。
As for the elbow that limits the length of the bridge after reconstruction, any length and distance can be controlled. Elbows of various angles and lengths can be made through simple mathematical calculation.
另外,如果生产完成,必然要运输使用,必须保证电缆桥架的质量。优良的品质可以保证桥梁的承载能力,在运输和装载过程中不会变形,可以保证到达施工现场或出厂的条件。
In addition, if the production is completed, it must be transported and used, and the quality of the cable tray must be guaranteed. The excellent quality can ensure the bearing capacity of the bridge, will not deform during transportation and loading, and can ensure the conditions of arriving at the construction site or leaving the factory.

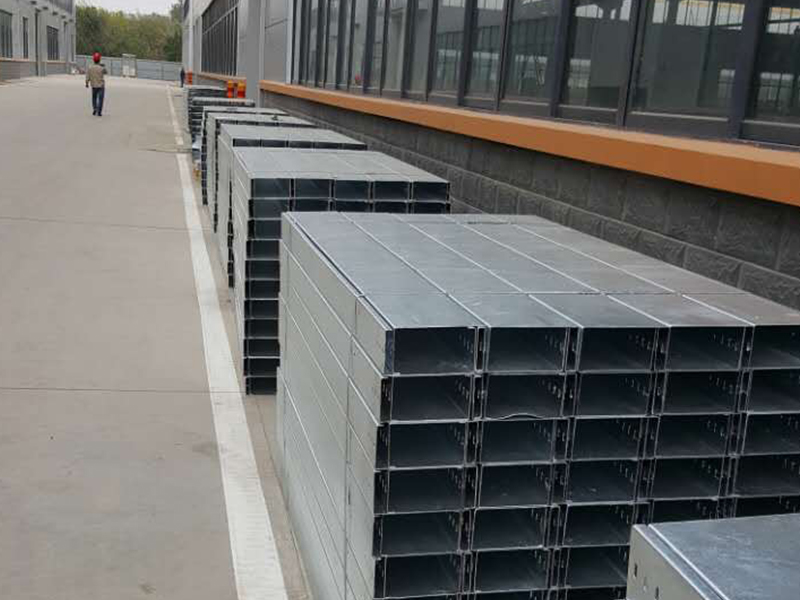

济南桥架
无需确保电缆桥架的安装。良好的安装可以大大减少运输过程中的产品冲突,大大提高产品完整性,并确保电缆桥架到达施工现场时不掉漆。
It is not necessary to ensure the installation of cable tray. Good installation can greatly reduce product conflicts during transportation, greatly improve product integrity, and ensure that the paint does not fall off when the cable tray arrives at the construction site.
适用于电缆桥架包装。出厂时应妥善处理桥梁碰撞、油漆剥落等问题,并在运输过程中做好保护和安装,避免碰撞。
Suitable for cable tray packaging. Bridge collision, paint peeling and other problems shall be properly handled before leaving the factory, and protection and installation shall be done during transportation to avoid collision.
在安装电缆桥架时,负载是一个非常重要的信息,也是了解数据的重要信息。在安装过程中,负载非常重要,这也是很多人在选择负载时会担心的原因。因为桥架负载会根据不同的情况有不同的选择。
When installing the cable tray, the load is a very important information, and it is also an important information to understand the data. During the installation process, the load is very important, which is also the reason many people worry about when selecting the load. Because the bridge load will have different choices according to different situations.
济南桥架还对每一种不同型号和类型的索桥都有固定的承载力。因此,在使用中,在选择所需的跳线类型和规格时,还必须考虑实际要求和现场要求。
Jinan Bridge also has a fixed bearing capacity for each different model and type of cable bridge. Therefore, in use, actual requirements and site requirements must also be considered when selecting the required jumper type and specification.
以上是问答的相关内容。我希望它可以帮助你。如果您对此问题有任何疑问,欢迎您关注我们的网站http://www.sddlqj.cn并咨询我们的工作人员,将竭诚为您服务。
The above is the relevant content of Q & A. I hope it can help you. If you have any questions about this issue, you are welcome to follow our website http://www.sddlqj.cn And consult our staff, will serve you wholeheartedly.
